Cisco Duo configuration/setup and faced errors in PAM
Open Server Manager.

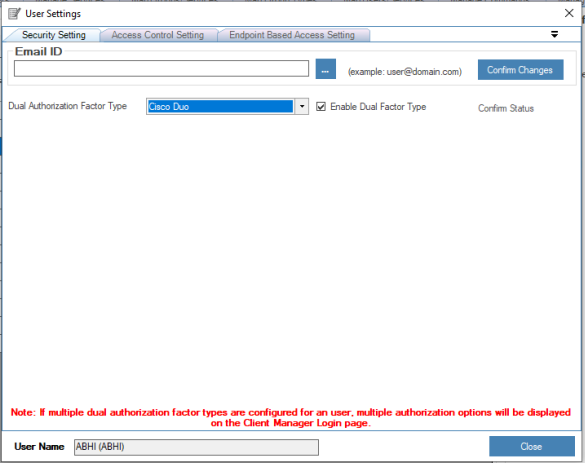

Select the respective user. Right click and select Edit User Settings. Select Cisco Duo from the Drop Down and select "Enable Dual factor Type" and select "Confirm Status".

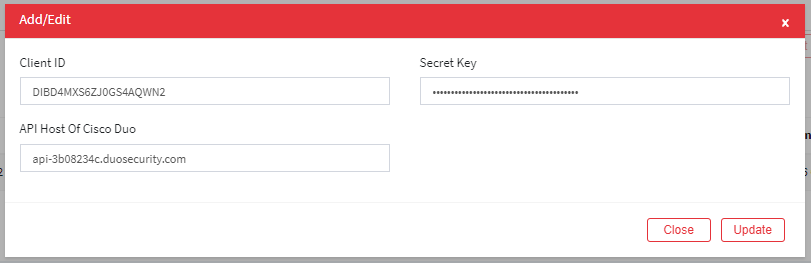

Open Admin Settings and find "Cisco Duo MFA". Click on Add and fill the details.
For getting these details open Cisco Duo website and Login with an Administrative Account.

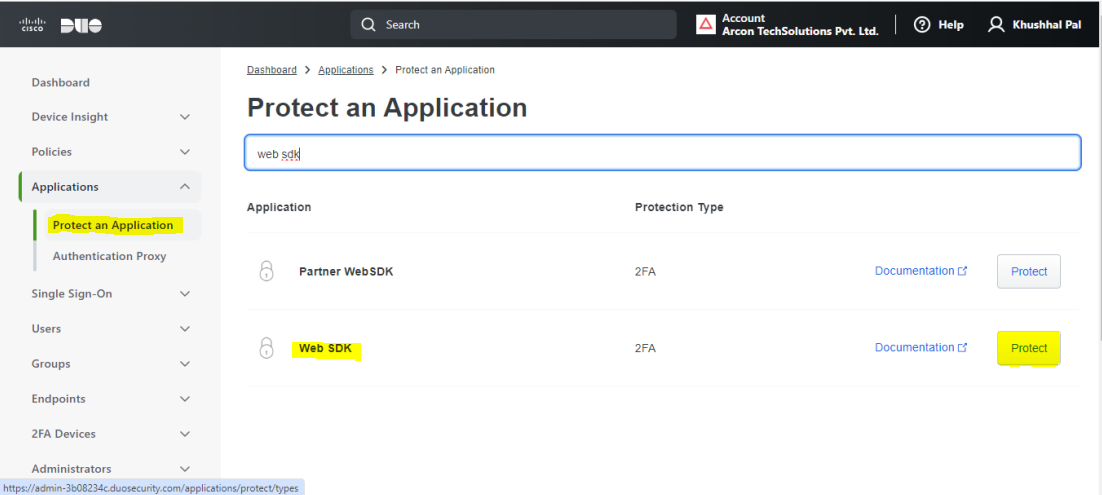

Go to Applications and select Protect an Application.
Search for Web SDK (PAM uses Web SDK API for Cisco DUO MFA).
Select Protect Button beside Web SDK.

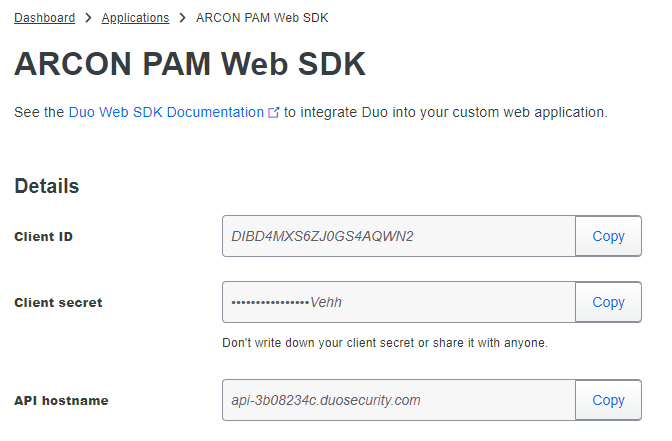

Copy the shown details in the Admin Settings page Cisco DUO MFA and Save the details.

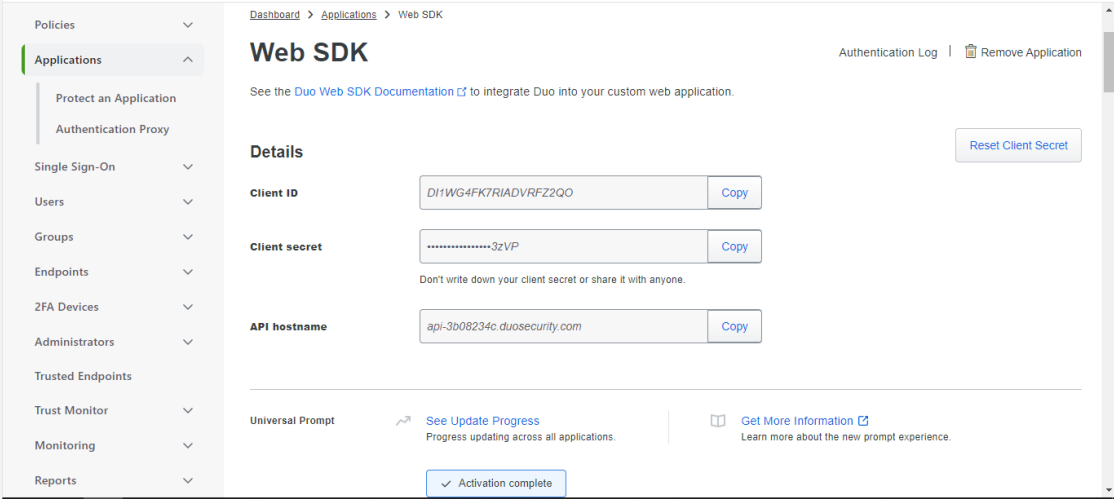

Make the require changes in the Application Created and make sure the Activation is Complete in the Page. Save the Made Changes.
You can use the link for configuration of Application for any doubts.
Try to login into PAM for which Cisco DUO is configured.

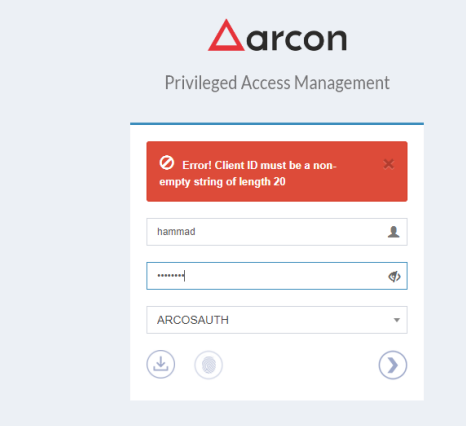

If you get below error
This means the details have not been saved on the Admin Settings Page. Save the gathered details from the Cisco DUO Application (Client ID , Secret ID and API Host ).

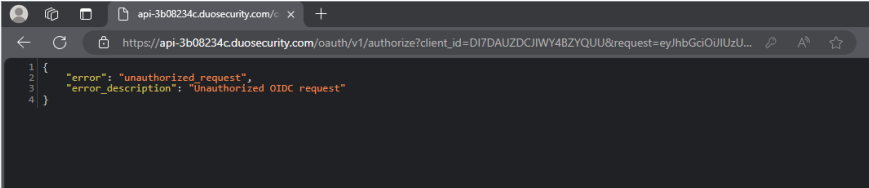

If you get the below error after the details are saved.
This error means you have entered the details for Wrong API.
Make Sure the Application is Web SDK
Make sure the URL shown in the error has the correct details.
The API URL and client id should match with what you have gathered from the Cisco Application.
According to the Above details when I enter my details in PAM ACMO my URL should be.
Make sure your details match with Application Created in Cisco DUO.

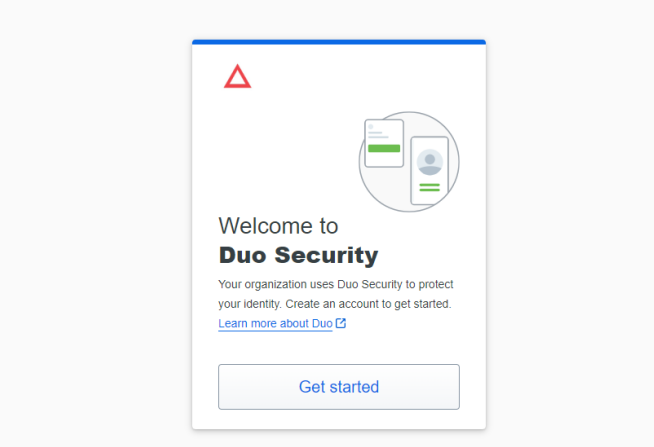

If configuration is successful you will get the below page.

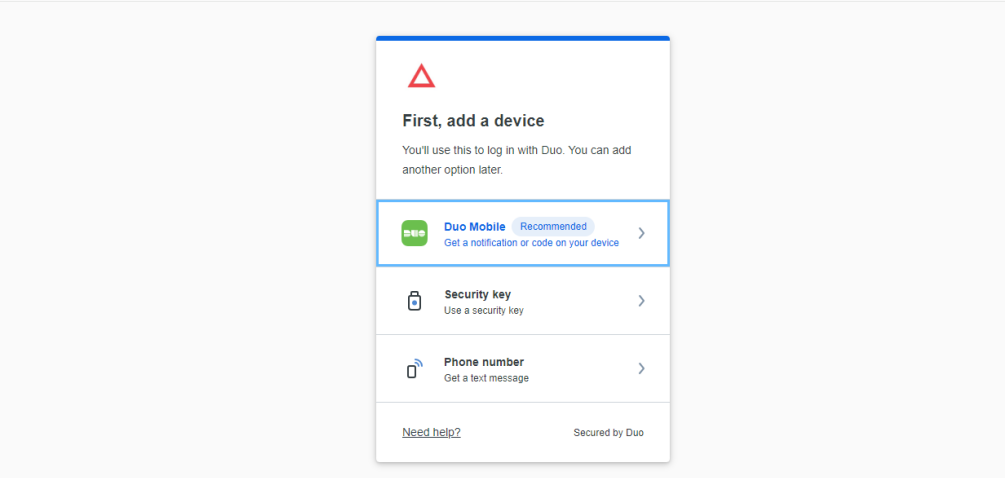

Add the required details and select the first option if you want to authorize using Mobile DUO App.

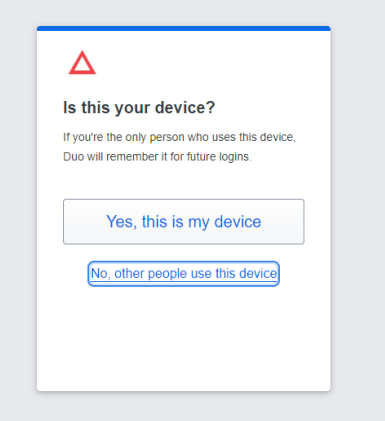

If you want the Authorization to happen every time you login into PAM. Select "No, other people use this device".
If this is not selected PAM will automatically login without any MFA
